Free Hand Sketching

Here it is difficult to say you through steps that how to construct Free Hand Sketching. So that here we providing you the contents through pictures and Video materials.We hope it will very  effective and useful for you all.

Sample Problems :

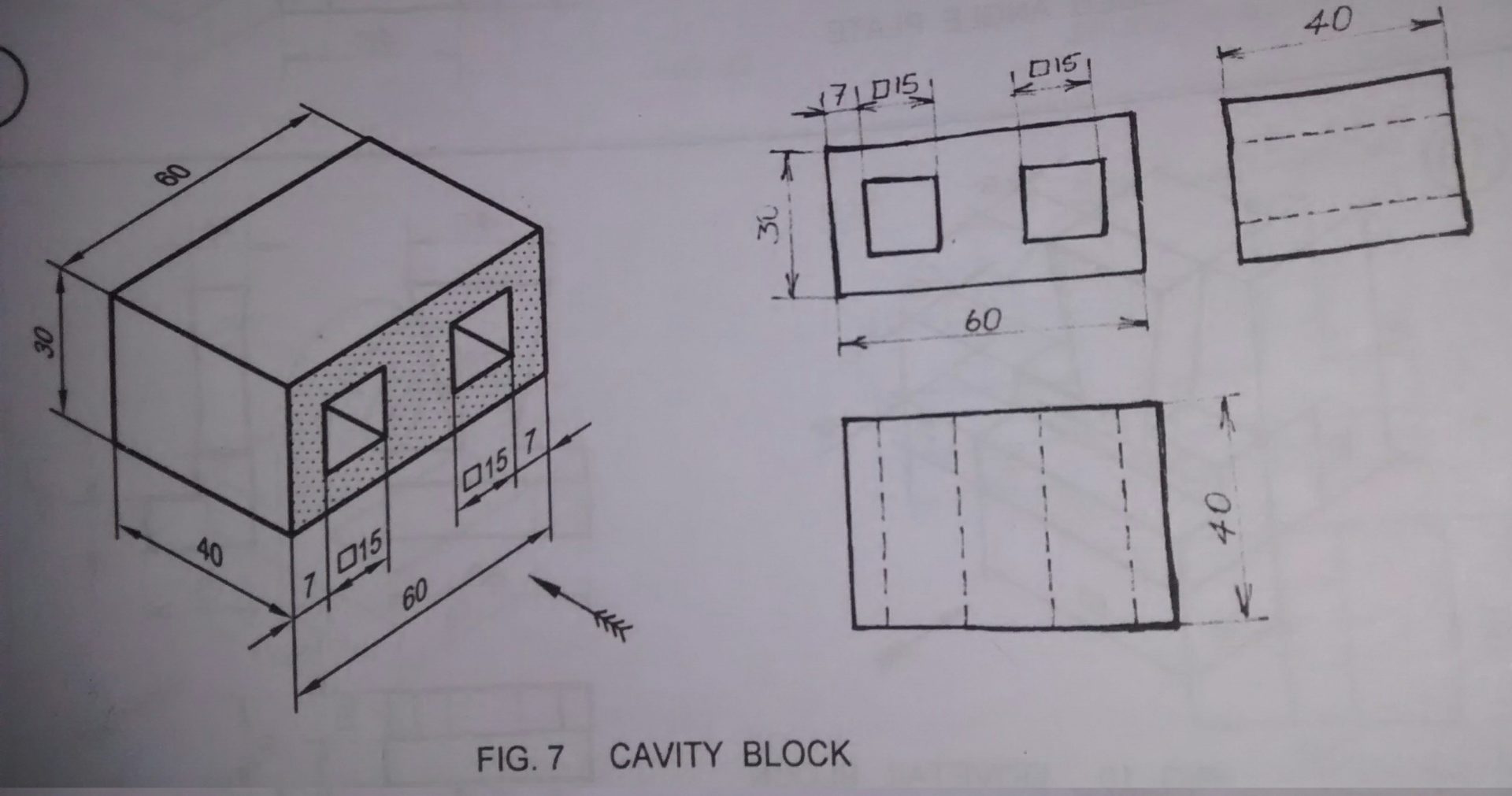

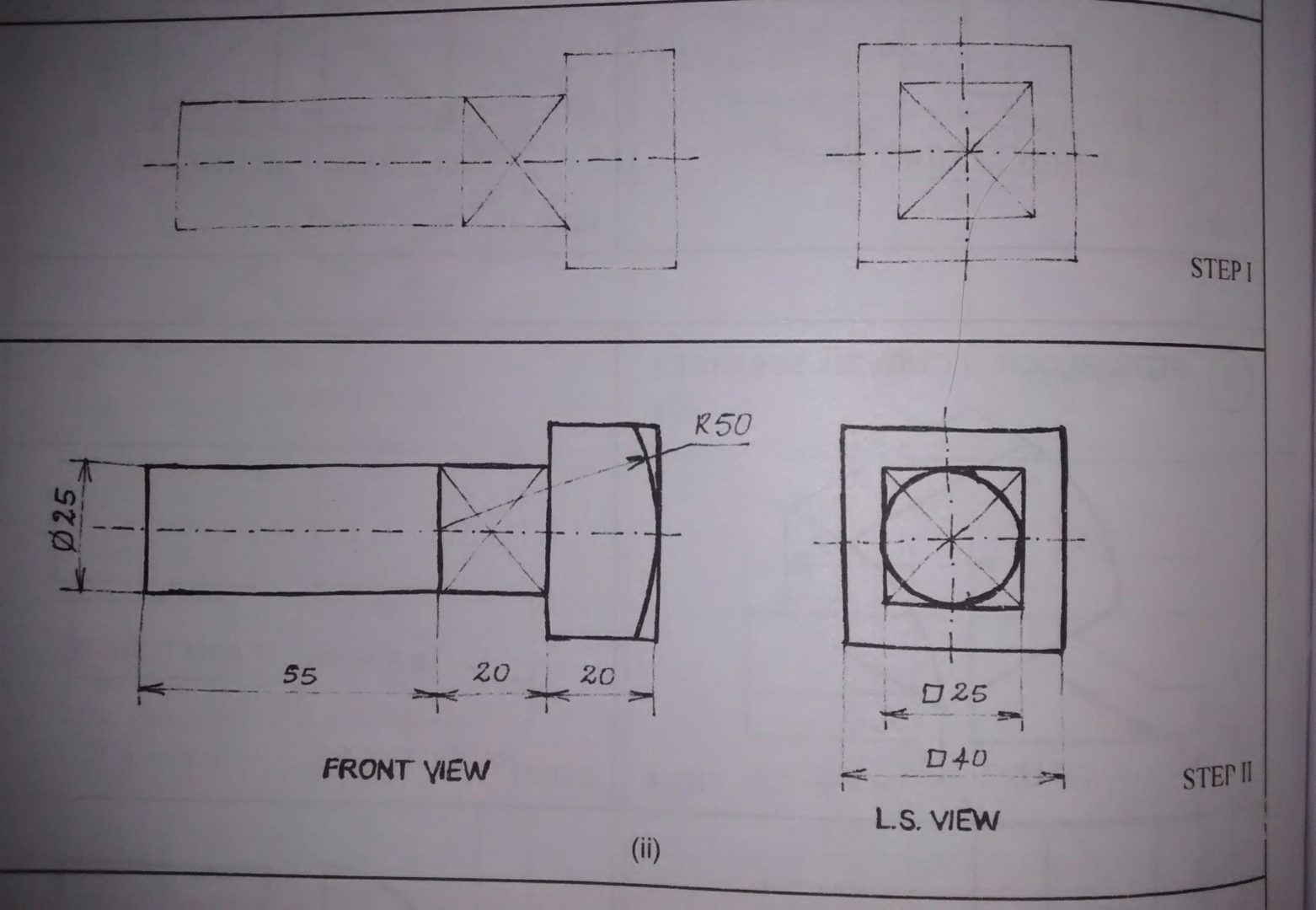

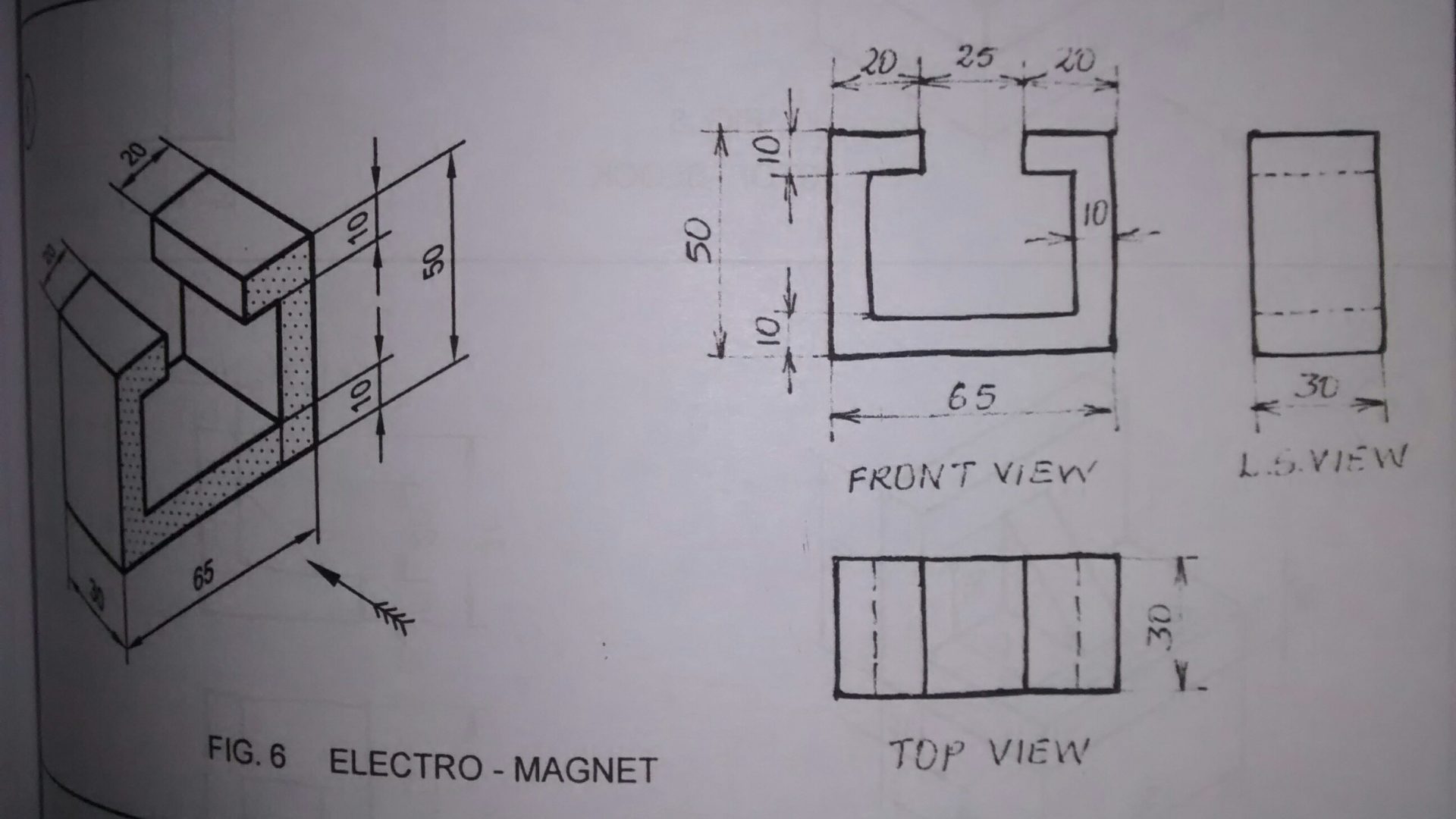

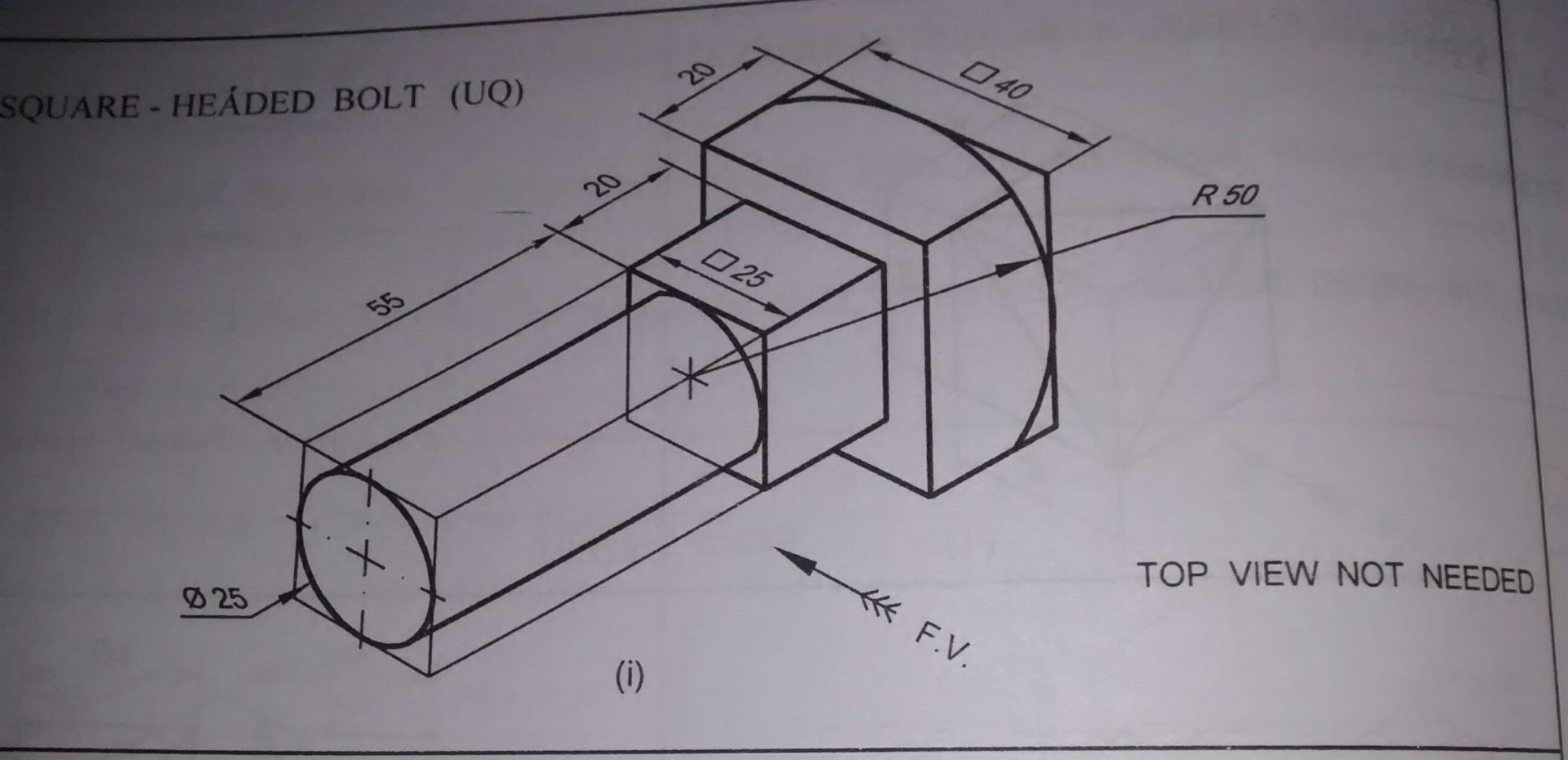

Sketch freehand the following orthographic views for the given isometric views (a) Front View, (b) Top View, (c) Side Viewed from the side available for viewing.Mark the dimensions.

  Free Hand Sketching ⇓free hand sketchingfree hand sketching_20150523_071100 Free Hand Sketching
