Techniques of polymerization

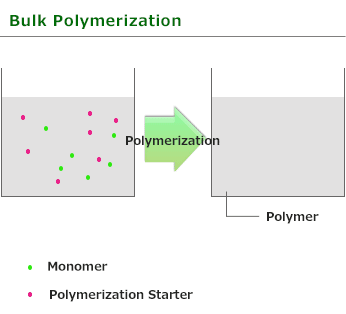

Bulk polymerization

Bulk polymerization or mass polymerization is carried out by adding a soluble initiator to a pure monomer in liquid state. The initiator should dissolve in the monomer. The reaction is initiated by heating or exposure to radiation. As the reaction proceeds the mixture becomes more viscous. The reaction is exothermic and a wide range of molecular masses are produced.

Techniques of polymerization

Bulk polymerization is carried out in the absence of any solvent or dispersant and is thus the simplest in terms of formulation. It is used for most step-growth polymers and many types of chain-growth polymers. In the case of chain-growth reactions, which are generally exothermic, the heat evolved may cause the reaction to become too vigorous and difficult to control unless efficient cooling. Bulk polymerization has several advantages over other methods, these advantages are

  • The system is simple and requires thermal insulation.
  • The polymer obtained is pure.
  • Large castings may be prepared directly.
  • Molecular weight distribution can be easily changed with the use of a chain transfer agent.
  • The product obtained has high optical clarity

Disadvantages

  • Heat transfer and mixing become difficult as the viscosity of reaction mass increases.
  • The problem of heat transfer is compounded by the highly exothermic nature of free radical addition polymerization.
  • The polymerization is obtained with a broad molecular weight distribution due to the high viscosity and lack of good heat transfer.
  • Very low molecular weights are obtained.
  • Gel effect should be there

For reducing the disadvantages of bulk polymerization, the process can be carried out in a solution. This is known as solution polymerization.

Polymer characterization is the analytical branch of polymer science.

The discipline is concerned with the characterization of polymeric materials on a variety of levels. The characterization typically has as a goal to improve the performance of the material. As such, many characterization techniques should ideally be linked to the desirable properties of the material such as strength, impermeability, thermal stability, and optical properties.

Characterization techniques are typically used to determine molecular mass, molecular structure, morphology, thermal properties, and mechanical properties.

Emulsion polymerization

Emulsion polymerization is a type of radical polymerization that usually starts with an emulsion incorporating water, monomer, and surfactant. The most common type of emulsion polymerization is an oil-in-water emulsion, in which droplets of monomer (the oil) are emulsified (with surfactants) in a continuous phase of water. Water-soluble polymers, such as certain polyvinyl alcohols or hydroxyethyl celluloses, can also be used to act as emulsifiers/stabilizers. The name “emulsion polymerization” is a misnomer that arises from a historical misconception. Rather than occurring in emulsion droplets, polymerization takes place in the latex particles that form spontaneously in the first few minutes of the process. These latex particles are typically 100 nm in size, and are made of many individual polymer chains. The particles are stopped from coagulating with each other because each particle is surrounded by the surfactant (‘soap’); the charge on the surfactant repels other particles electrostatically. When water-soluble polymers are used as stabilizers instead of soap, the repulsion between particles arises because these water-soluble polymers form a ‘hairy layer’ around a particle that repels other particles, because pushing particles together would involve compressing these chains.

Emulsion polymerization is used to manufacture several commercially important polymers. Many of these polymers are used as solid materials and must be isolated from the aqueous dispersion after polymerization. In other cases the dispersion itself is the end product. A dispersion resulting from emulsion polymerization is often called a latex (especially if derived from asynthetic rubber) or an emulsion (even though “emulsion” strictly speaking refers to a dispersion of an immiscible liquid in water). These emulsions find applications in adhesives, paints, paper coating and textile coatings. They are often preferred over solvent-based products in these applications due to the absence of VOCs (Volatile Organic Compounds) in them.

Techniques of polymerization

Advantages of emulsion polymerization include:

  • High molecular weight polymers can be made at fast polymerization rates. By contrast, in bulk and solution free radical polymerization, there is a tradeoff between molecular weight and polymerization rate.
  • The continuous water phase is an excellent conductor of heat, enabling fast polymerization rates without loss of temperature control.
  • Since polymer molecules are contained within the particles, the viscosity of the reaction medium remains close to that of water and is not dependent on molecular weight.
  • The final product can be used as is and does not generally need to be altered or processed.

Disadvantages of emulsion polymerization include:

  • Surfactants and other polymerization adjuvants remain in the polymer or are difficult to remove
  • For dry (isolated) polymers, water removal is an energy-intensive process
  • Emulsion polymerizations are usually designed to operate at high conversion of monomer to polymer. This can result in significant chain transfer to polymer.
  • It cannot be used for condensation, ionic or Ziegler-Natta polymerization, although some exceptions are known.

Solution Polymerization

Solution polymerization is a method of industrial polymerization. In this procedure, a monomer is dissolved in a non-reactive solvent that contains a catalyst.

The reaction results in a polymer which is also soluble in the chosen solvent. Heat released by the reaction is absorbed by the solvent, and so the reaction rate is reduced. Moreover, the viscosity of the reaction mixture is reduced, not allowing auto acceleration at high monomer concentrations. Once the maximum or desired conversion is reached, excess solvent has to be removed in order to obtain the pure polymer. Hence, solution polymerization is mainly used for applications where the presence of a solvent is desired anyway, as is the case for varnish and adhesives. It is not useful for the production of dry polymers because of the difficulty of complete solvent removal.

This process is one of two used in the production of sodium polyacrylate, a super absorbent polymer used in disposable diapers.

Notable polymers produced using this method are polyacrylonitrile (PAN) and polyacrylic acid (PAA).

Solution polymerization is used to create polymers and copolymers by dissolving a monomer and a catalyst in a non-reactive solvent. During this process, the solvent liquid absorbs the heat generated by the chemical reaction which controls the reaction rate. The liquid solvent used in the solution polymerization procedure usually remains a solvent for the resulting polymer or copolymer. This process is only suitable for the creation of wet polymer types, as the removal of excess solvent is difficult. While the removal of the excess solvent is possible using distillation, it is usually not considered economically possible in an industrial situation.

The process of solution polymerization offers a few advantages as well as one major disadvantage. The advantages include precise control of the chemical reaction, control of the resulting heat and viscosity, and control over the auto acceleration of the process. The disadvantage of the process is the difficulty involved in the removal of excess solvent from the finished polymer.

The solvents used in the solution polymerization procedure must be chosen carefully. A solvent that is non-reactive to the monomer is essential to the process. If a reactive solvent is used, dangerous chain reaction processes or other undesirable effects can occur as a result of auto acceleration. Auto acceleration is a reaction that occurs when the heat produced by polymerization does not dissipate quickly enough by the solvent. As the heat builds up, the viscosity of the solution increases, causing the polymerization process to accelerate beyond safe control.

Industrial solution polymerization processes are commonly used to produce polymers with special characteristics. The chemical reaction that takes place between the monomer and catalyst can lend unique properties to the end product. One example of this type of polymer is sodium polyacrylate, the exceptionally absorbent polymer used in disposable diapers.

While this process is not generally feasible for dry polymers, it works well for wet polymer types. The process of industrial solution polymerization is used to create polymers and copolymers that can be used in their solution form. Examples of this usage include industrial glues and surface coatings.

Synthetic elastomers can also be produced using the solution polymerization process. This method produces a more precise polymer than emulsion polymerization methods. By controlling the addition of refined monomers to the catalyst-solvent solution, the resulting polymers can be carefully designed for specific properties. These synthetic elastomers are commonly found in products such as latex gloves, neoprene wetsuits and floor covering materials.

Suspension Polymerization

Suspension polymerization is used only in free radical type processes. The monomer is mechanically dispersed in a media, usually water. There are cases where an organic media is used in which neither the polymer nor the monomer is soluble in the organic media.

  • styrene- a liquid
  • vinyl chloride- a gas at room temperature

For suspension polymerization, there are two phases, water and organic, and the starting point may be 10 parts of the former, and 1 part of the latter. The initiator used can be water soluble or organic soluble [benzoyl peroxide, AIBN, or (NH4)2(SxO4)y.] Usually the initiator is organic soluble.

Techniques of polymerization Techniques of polymerization

when using gases, pressure and containment concerns exist

  1. There are two separate phases throughout the whole process.
  2. The droplets must be kept far apart. This requires agitation: consistent, efficient, and controlled. A suspending agent can be used. Poly(vinyl alcohol) dissolved in the aqueous phase is a typical suspending agent.
  3. The rate of suspension polymerization is similar to the rate of bulk polymerization, but the heat transfer is much better. For suspension polymerization, initiation, propagation, and termination take place inside the droplet.
    • examples include the polymerization of methyl methacrylate and vinyl chloride.
    • The solution polymerization of butadiene, isobutylene and isoprene require a pressure system.
    • the media to monomer ratio is 10:1. Is this wt/vol, wt/wt, or vol/vol?? In an industrial setting it may be easier to combine chemical feedstocks on a per volume basis. Ask Dr. Stoffer.
    • Particle size is affect by the following four factors:
      1. stirring rate
      2. ratio of reactants
      3. suspension agent
      4. temperature
    • The plant operator must control temperature, and the particle size (of the growing polymer mass in the bubble.) If the particle size gets to large, the particle will absorb too much heat. This probably relates to the idea that as you increase the volume of a sphere, the ratio of surface area to volume decreases, and this ratio relates to heat transfer. Particle size may be 0.01 to 0.5 cm, or as low as 1 micron.

A suspension agent is a material that gives a surface activation that keeps droplets from become larger (droplets coming together to form larger droplets is called coalescence.)

I think the term coalescence is also used for when the polymer molecules in a solution come together as the solvent evaporates, an example of which is the film formation that occurs for a paint system.

Suspension polymerization is similar to bulk polyerization, and it could be considered “bulk polymerization within a droplet.” The speed at which the reaction takes place for a given temperature is the same, and just as for bulk polymerization, the kinetics or rates are proportional to monomer concentration.

There is efficient heat transfer with speed or bulk process.

Recovery of product by mechanical separation (i.e, filtration, washing) is a lot cheaper than thermo distillation. (this sentence sort of doesn’t make sense.)

The properties of the polymer are similar to those of the same polymer made by a bulk polymerization.
Limitations of suspension polymerization

  1. It only applies to free radical process.
  2. Ionic catalysts don’t work because they compete with water.
  3. Agitation is critical because as the viscosity within the bead rises, the reaction rate increases suddenly ( Tromsdoiff effect.) This leads to a surge in heat generation which does not usually occur in solution or emulsion polymerization.
